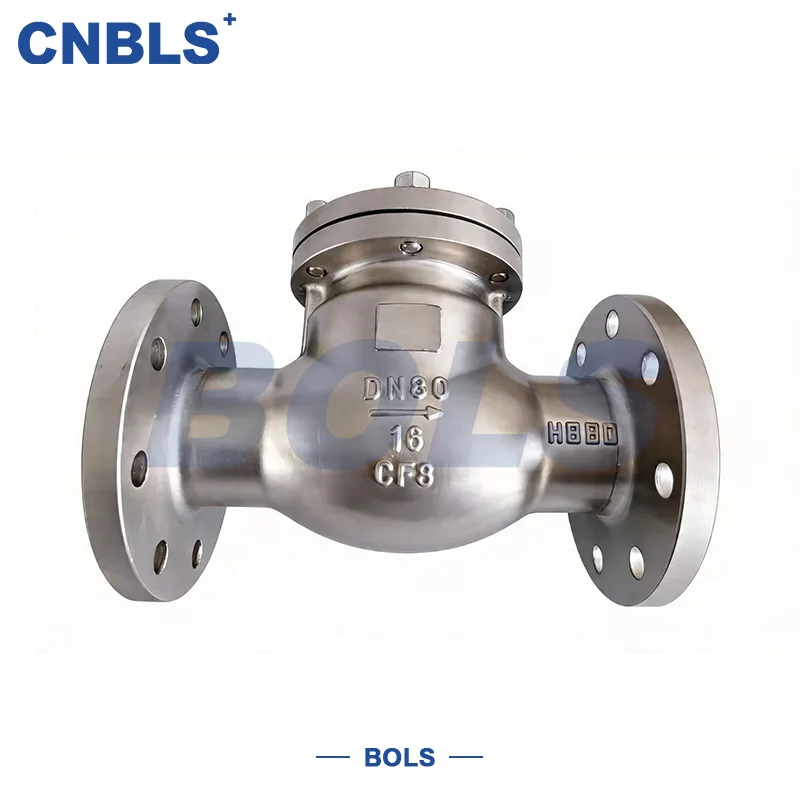

GB Swing Check Valves

Also known as non-return valves or one-way valves, GB Swing Check Valves are fully automatic pipeline protection valves that open and close entirely by medium pressure, with no manual operation or external power needed.

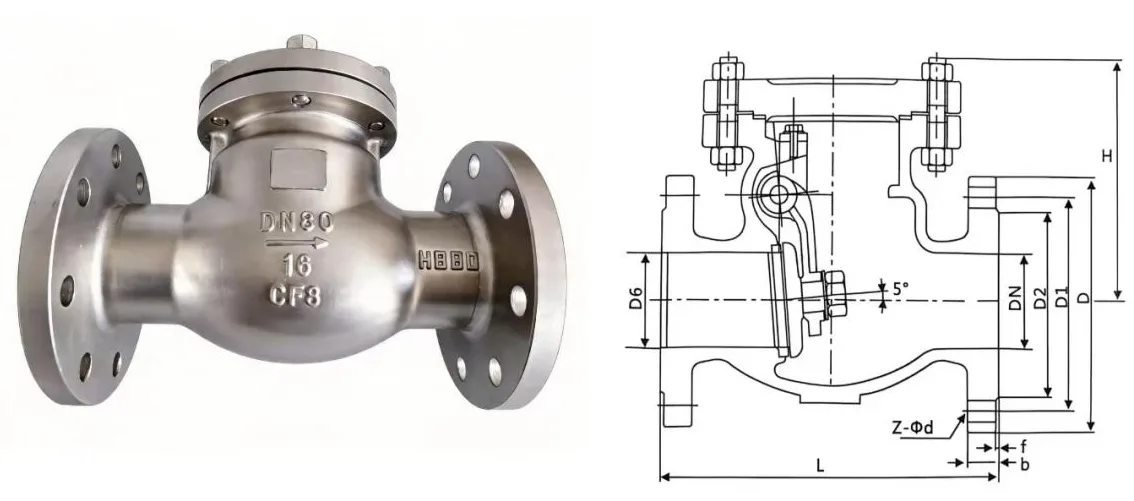

Adopting an integrated built-in rocker swing structure, key opening and closing components including discs, pin shafts and rocker arms are all enclosed inside the valve body without exposed transmission parts, effectively reducing external leakage and delivering excellent sealing performance.The straight-through flow channel design lowers flow resistance and pressure loss, ideal for large-flow pipeline conditions. Hard alloy surfacing is optional for the seat sealing surface to greatly enhance wear resistance, corrosion resistance and erosion resistance, extending service life. Manufactured in full compliance with national standards, it is a standard one-way protection accessory for pipeline systems.

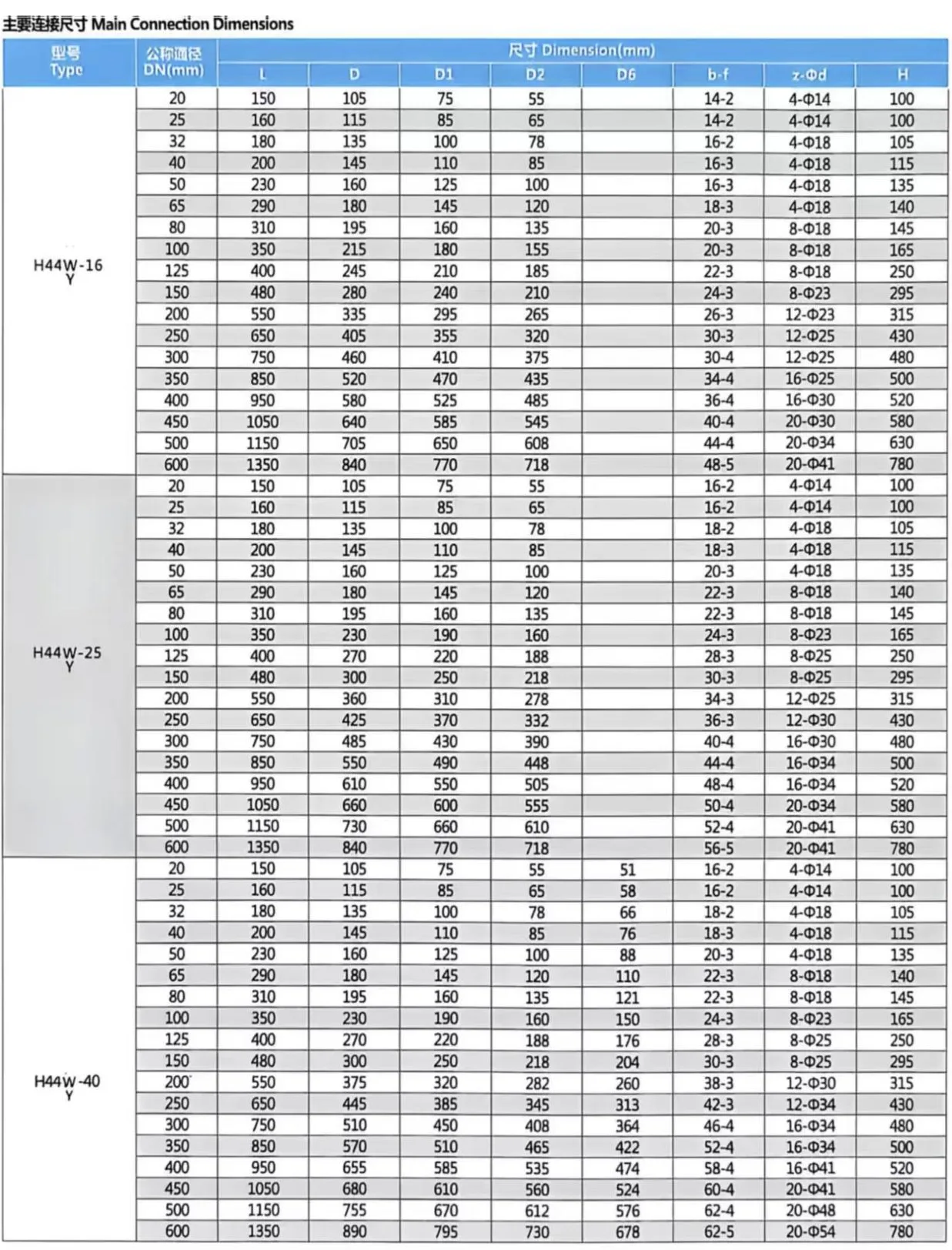

Product Core Parameters

Developed by Bolaisi, this series of GB Swing Check Valves covers full models of H44W/Y-16P/25P/40P. Made of high-quality stainless steel with flange connection for easy installation, it serves as a core anti-reflux protection valve for industrial and civil pipeline systems. It adapts to fluid conveying under multiple working conditions with stable and reliable operation.

Core Application Scenarios & Main Uses

Featuring strong universal adaptability, GB Swing Check Valves are widely applied in fluid pipeline systems across industries:

Municipal & Building Water Supply and Drainage

Used in municipal water supply & drainage networks, building secondary water supply and sewage discharge systems. It prevents medium backflow during water cut-off or pump shutdown, avoiding water pollution and pipe network pressure imbalance.

Petrochemical Industry

Suitable for crude oil, refined oil and chemical medium conveying pipelines. It stops pump reverse rotation and raw material cross-contamination caused by backflow, ensuring safe and stable production processes.

Power & Thermoelectric Industry

Applied in power plant boiler steam-water systems, circulating cooling water systems and combined heat and power pipe networks. It prevents backflow of steam and condensed water to protect core equipment such as steam turbines and water pumps.

HVAC & Fire Protection Systems

Matched with central air conditioning water circulation, heating pipe networks, fire sprinkler and hydrant systems. It eliminates system pressure disorder caused by medium backflow and guarantees the reliability of fire emergency operation.

Metallurgical Industry

Widely used in circulating water systems and process fluid pipelines of metallurgical production lines. It resists impact from reverse fluid and protects pumps and valves, adapting to complex working conditions with high temperature and impurities.

Working Principle

Bolaisi stainless steel GB Swing Check Valves realize fully automatic opening and closing relying on medium pressure difference and disc self-weight, without external power or manual intervention, featuring sensitive response and reliable protection.

Forward Opening & Conduction

When the inlet pressure is higher than the outlet pressure, the forward thrust of fluid overcomes the disc self-weight and reverse pressure difference to push the disc open. The disc rotates and lifts around the fixed internal pin shaft to fully unblock the pipeline for stable forward fluid delivery.

Automatic Reverse Closing (Anti-backflow Protection)

When the front water pump stops, fluid flow cuts off, or outlet pressure exceeds inlet pressure, the combined force of reverse pressure difference and disc self-weight drives the disc to quickly reset and tightly fit the valve seat for complete shut-off. It thoroughly blocks fluid backflow and automatically avoids equipment damage, process failures and potential safety hazards caused by reverse flow.
