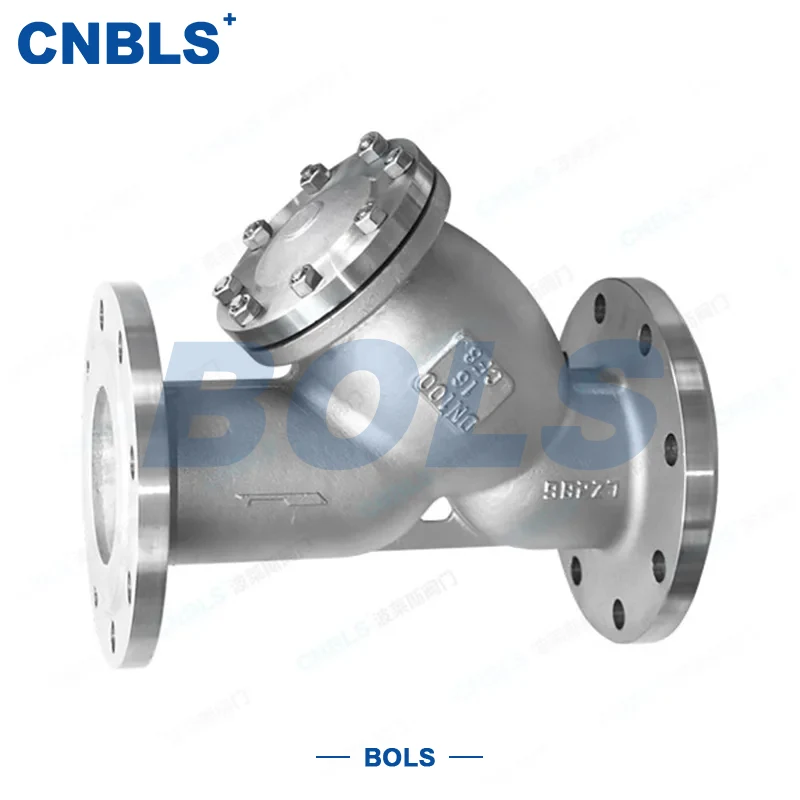

Stainless Steel Flange Y-type Filter

Core Application Scenarios

Stainless Steel Flange Y-type Filter features compact structure, high efficiency, easy maintenance and excellent corrosion resistance. It is widely used in various pipeline systems to purify media and protect equipment.

● Food & Pharmaceutical Industry: 316L stainless steel + food-grade seals, 100–200 mesh high-precision screen, fully meets FDA/3A standards. No heavy metal precipitation, no contamination. Suitable for raw material transmission, beverage, dairy production with online blowdown.

● Petrochemical Industry: 316/316L material, Class 150–Class 600 rating. Effectively removes particles from solvents, sour crude, chlorinated media to protect valves and instruments. Automatic blowdown model for continuous operation.

● Municipal & Construction: 304 stainless steel, 20–60 mesh. Removes sand, rust from water supply, HVAC, secondary water supply systems. Protects pumps and solenoid valves at low maintenance cost.

● Industrial Manufacturing: For hydraulic systems, compressed air lines, coolant circuits. 50–100 mesh removes metal particles and dust to reduce wear. Y-type design ensures minimal flow resistance.

● Precision Instrument & Electronics: 200–500 mesh sintered mesh for ultra-pure water and semiconductor systems. 316L ensures high cleanliness and stable operation.

Core Product Advantages

● High efficiency & low resistance: Flow loss ≤0.02MPa, filtration efficiency ≥98%.

● Strong & durable: Forged stainless steel body, high pressure resistance.

● Wide compatibility: 304/316/316L for water, oil, gas, chemicals.

● Easy maintenance: Online blowdown, quick-release screen, minimal downtime.

● Safe & compliant: FDA/3A for food/pharma; meets GB & ASME standards.

Core Technical Parameters

Product Definition & Working Principle

Stainless Steel Flange Y-type Filter is a precision filtering device with Y-type flow passage and female threaded connection. It removes solid particles, rust and suspended solids to protect downstream pumps, valves and instruments.

Working Principle:Based on gravity sedimentation + screen filtration.Media enters the Y-type body; heavy particles settle into the bottom chamber. Fine particles are trapped by the screen. Cleaned media flows downstream.A drain valve is provided for easy cleaning without disassembly, greatly reducing downtime.

Standard threaded connection (NPT/BSP/GB) and 304/316/316L material ensure wide adaptability to various media and harsh conditions.

Main Types & Application Matching

Material Selection Guide

Body & Frame

● 304: General water, air, oil; -20°C~100°C; PN16–PN40; municipal & general industry.

● 316: Chloride, weak acid, seawater; -20°C~180°C; PN16–PN63; better pitting resistance.

● 316L: Strong corrosion, hygienic service; -40°C~200°C; FDA/3A; pharmaceutical & food.

Screen

● Woven mesh: 10–200 mesh, economical, easy replacement.

● Sintered mesh: 200–500 mesh, high strength, wear-resistant.

● Hastelloy: High temperature ≤300°C, extreme corrosion.

Seals

● PTFE: -20°C~180°C, strong corrosion resistance.

● EPDM: -20°C~120°C, weather-resistant for water systems.

● FKM (Viton): -20°C~200°C, high temperature & corrosion.

● Food-grade silicone: FDA/3A, odorless, non-polluting.

Installation & Maintenance

Installation

1.Follow flow arrow; install with the blowdown chamber facing downward.

2.Clean pipeline before installation; check screen and seals.

3.Use PTFE tape or gaskets; torque properly to avoid damage.

4.Reserve ≥30cm maintenance space; install cover outdoors.

5.Pressurize slowly, vent air, pressure test for 30 minutes before use.

Maintenance

1.Regular blowdown: 1–2 times/week (normal); 1–2 times/day (dirty media).

2.Clean screen when pressure difference ≥0.02MPa. Replace if broken.

3.Clean body, apply anti-rust oil; inspect for pitting in corrosive environment.

4.Troubleshoot leakage, low flow or high pressure difference promptly.

5.Establish maintenance records for lifecycle management.
