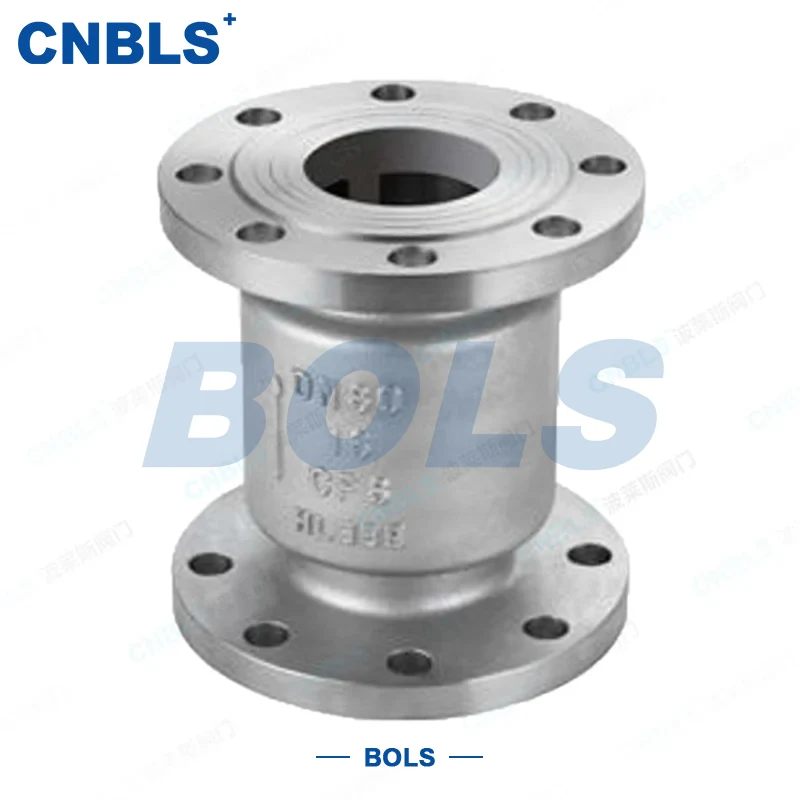

Stainless Steel Vertical Check Valves

Stainless Steel Vertical Check Valves are automatic shut-off valves specially designed for vertical piping systems.They mainly consist of stainless steel body, disc, guiding mechanism and optional stainless steel spring, without additional driving devices.The valves open and close automatically relying on medium pressure and gravity (or spring force).

Its core design fits vertical pipeline requirements: medium must flow vertically upward.During forward flow, medium pressure overcomes disc gravity (or spring preload) to push the disc upward along the guiding mechanism, ensuring smooth medium passage.In case of backflow, the disc quickly and accurately falls back to seal under combined action of self-weight, backflow pressure (and spring force), blocking backflow.

With compact structure, low flow resistance and reliable sealing, these valves are widely used in municipal water supply & drainage, HVAC in high-rise buildings, petrochemical, power, food & pharmaceutical industries with high corrosion resistance requirements.They are key components ensuring unidirectional stable flow of corrosive media in vertical pipelines.With excellent performance, Stainless Steel Vertical Check Valves have become the preferred components for backflow prevention in vertical pipelines.

Core Technical Parameters

Core Product Advantages

Vertical dedicated design, strong adaptability

Specially designed for vertical pipelines with vertical flow path and installation direction, solving installation difficulties in narrow spaces, especially suitable for high-rise buildings, equipment mezzanines and other space-restricted scenarios.Stainless Steel Vertical Check Valves can be directly matched with various vertical piping systems.

All-stainless steel material, corrosion-resistant and durable

Adopts 304/316/316L stainless steel and corresponding ANSI materials, with corrosion resistance, high temperature resistance and wear resistance.It can operate stably for a long time in corrosive media such as chlorinated water, acid and alkali, without frequent replacement, reducing maintenance costs.

Sensitive opening & closing, reliable backflow prevention

Built-in precise guiding mechanism ensures disc lifting without deviation. Closing response can be as fast as 0.2s, quickly blocking medium backflow, effectively protecting pumps, compressors and other downstream equipment from water hammer impact and avoiding equipment damage.

Dual-standard compatible, wide universality

Complies with both GB (GB/T series) and ANSI (API 594, ANSI series) standards, flexibly adapting to GB and ANSI piping systems without additional modification, lowering procurement and installation costs.

Multiple specifications available for various working conditions

Diameter ranges from DN15~DN300 with complete pressure ratings. Sealing type and connection can be selected as required.Spring-loaded type is suitable for low-flow conditions; non-spring type is more energy-saving, meeting requirements of different scenarios.

Component Materials & Structure

Core Component Materials

● Body / Bonnet: GB 304/316/316L (GB/T 1220), ANSI ASTM A182/A351 corresponding materials, selected according to medium corrosion intensity.

● Disc: Same material as body + Stellite alloy overlay (hard seal), or stainless steel + PTFE soft seal ring (soft seal), balancing sealing performance and durability.

● Guiding mechanism: Forged stainless steel same as body; guide sleeve made of stainless steel-based hard alloy, wear and corrosion resistant, ensuring accurate opening/closing without deviation.

● Spring (optional): 304/316/316L stainless steel spring steel with stable elasticity, suitable for various corrosive conditions and temperatures.

● Seals: Inconel alloy metal ring for high temperature; PTFE/perfluoroether rubber ring for medium & low temperature; spiral wound gasket for flange sealing, ensuring reliable sealing.

● Bolts / Nuts: Stainless steel same as body, compliant with corresponding GB/ANSI standards, ensuring overall corrosion resistance and connection strength.

Structural Features

Vertical lift structure, straight-through vertical flow path, built-in precise guiding mechanism.Optional spring-assisted closing for low-flow conditions.Dual connection: flanged / internal thread, easy assembly and disassembly.Compact overall structure with small space occupation.With scientific structural design, Stainless Steel Vertical Check Valves balance practicality and stability.

Design & Manufacturing Standards

Selection Guidelines

Confirm installation & flow direction

Ensure vertical pipeline installation with medium flowing vertically upward.Horizontal or inclined installation is strictly prohibited, otherwise it will cause disc failure and sealing leakage.Stainless Steel Vertical Check Valves are only suitable for vertical conditions.

Match standard & pressure class

Select corresponding PN/Class according to GB or ANSI pipeline system (e.g. GB PN16, ANSI Class150).Ensure pressure rating matches pipeline design pressure to avoid overpressure operation.

Sealing type selection

Metal hard seal for high temperature (>200℃), particle-containing or high-wear media.Soft seal for medium & low temperature (≤200℃) and clean media, achieving near-zero leakage to fit different media characteristics.

Accurate material matching

304 stainless steel for general corrosive media (weak acid & alkali, chlorinated water).316 stainless steel for strong corrosive media (concentrated acid & alkali, sulfur/chlorine-containing media).316L stainless steel for ultra-low temperature or strong corrosion conditions to ensure service life.

Spring vs non-spring type selection

Spring-loaded type for low-flow, low-pressure conditions (insufficient minimum opening pressure), assisted by spring for better reliability.Non-spring type for normal flow and pressure, opening/closing by medium pressure and gravity, more energy-saving.

Operation & Maintenance Notes

1 Installation Notes

● Install strictly vertically, ensure medium flow direction is consistent with the “upward arrow” mark on the body. Horizontal or inclined installation is prohibited.

● Before installation, verify valve model, pressure class, material and diameter match the pipeline. Check body, disc and guiding mechanism for damage. Manually push disc to confirm flexible lifting without jamming.

● Reserve maintenance space above the valve for subsequent disassembly of bonnet, removal of disc and guiding mechanism.

2 Routine Maintenance

● Regularly inspect connections and bonnet sealing during operation; tighten bolts or replace seals in case of leakage.

● Periodically disassemble and clean impurities and dirt inside the valve, check guiding mechanism flexibility. Inspect spring elasticity for spring-loaded type and replace in time if attenuated.

● Operate upstream valve slowly to increase medium pressure and flow gradually, avoiding instant high-pressure impact on the disc to prevent component damage.

3 Restart after Long-term Shutdown

Before restart, manually push disc to confirm flexible opening/closing. Check for no blockage inside the valve. After confirmation, introduce medium slowly to avoid component jamming causing sealing failure or opening/closing faults.

Application Fields

With strong corrosion resistance, compact structure and sensitive opening/closing, Stainless Steel Vertical Check Valves are widely used in vertical piping systems of the following industries:

● Municipal water supply & drainage: pipelines for corrosive media such as chlorinated water and sewage, especially vertical water pipes in high-rise buildings.

● HVAC in high-rise buildings: vertical pipelines for air conditioning and heating systems, highly adaptable to narrow spaces.

● Petrochemical industry: corrosive pipelines for chemical media, sulfur/chlorine-containing media, suitable for low to medium-high pressure conditions.

● Power industry: power station auxiliary systems, steam pipelines, high temperature resistant, wear resistant and stable in operation.

● Food & pharmaceutical industry: clean corrosive medium pipelines, meeting hygienic requirements with reliable sealing and no leakage.
