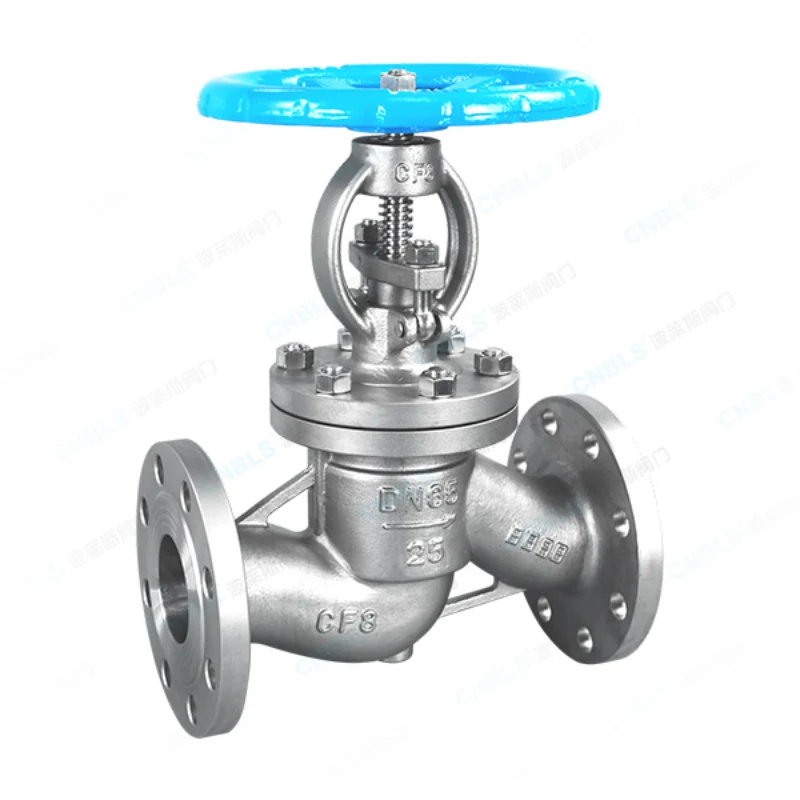

Flanged Globe Valve

Manufactured in strict accordance with industry standards, Bolaisi valves are available in a full range of materials—including carbon steel and stainless steel—and are suitable for complex operating conditions involving ambient or high temperatures, high pressures, corrosive media, steam, and oil products. Every unit undergoes rigorous pressure testing before leaving the factory, ensuring stable sealing, low flow resistance, and a long service life. These valves are widely used in global projects across the chemical, power generation, district heating, municipal infrastructure, and energy sectors.

Product Definition

The flanged globe valve features an integral cast-flange design at both ends of the valve body. The valve stem drives the disc in a vertical lifting motion, altering the flow area at the seat to achieve three primary functions: media shut-off, flow regulation, and pressure throttling. The flanged connection ensures a secure installation and robust sealing while facilitating convenient disassembly and maintenance. Consequently, the flanged globe valve is the preferred choice for piping systems requiring frequent cycling and flow or pressure regulation—applications where gate valves or ball valves cannot serve as adequate substitutes.

Core Product Parameters

Technical Specifications and Structural Performance

1. Flow Path and Fluid Dynamics

Features an optimized streamlined "S-shaped" flow path design, ensuring smooth media flow, minimal turbulence, and low pressure loss, thereby effectively reducing energy consumption in the piping system. Unlike the straight-through flow path of gate valves, the globe valve's unique curved valve chamber structure enables flow regulation and precise pressure reduction/stabilization, meeting the requirements for fine adjustment in process pipelines.

2. Sealing System Performance

Hard-sealing models utilize a precision-fitted conical sealing structure with high-hardness alloy hard-facing on the sealing surfaces. This provides resistance to high-velocity media erosion, high temperatures, and wear, ensuring stable sealing performance over the long term under conditions involving steam, trace particulates, and high pressure. The soft-sealed version offers a tight seal, achieving zero leakage at low pressures; it is suitable for applications involving purified water, gas, and clean fluids.

3. Opening/Closing and Transmission Performance

The valve stem is manufactured using an integral precision rolling process, resulting in a smooth, rust-resistant, and corrosion-resistant surface that ensures smooth, snag-free lifting. The stem nut is made of a highly wear-resistant copper alloy with a low friction coefficient and long service life; it supports frequent, high-cycle operation without slipping or wearing out, making it ideal for automated, high-frequency applications.

4. Valve Body Structural Strength

The valve body features a single-piece cast structure with uniform wall thickness and a dense casting microstructure, providing excellent resistance to high pressure, impact, and deformation. The flange and valve body are seamlessly integrated, offering high pressure-bearing capacity and a flat sealing surface that ensures a tight fit during installation, thereby minimizing the risk of flange leakage or deformation during long-term operation.

5. Application Suitability

The product supports conditions involving thermal cycling (high/low temperatures), high-pressure surges, and continuous operation. Its structural design avoids common issues found in standard valves, such as erosion, internal leakage, and jamming. Materials and sealing combinations can be customized based on the medium's corrosiveness, temperature, and pressure, making the valve suitable for the vast majority of complex industrial piping systems.

Production Process

Boles Valve adheres to precision manufacturing throughout the entire process; every flanged globe valve undergoes a comprehensive, standardized production sequence:

Raw Material Spectroscopic Analysis: Every batch of carbon steel and stainless steel raw material undergoes spectroscopic analysis to ensure material compliance and the absence of impurities or defects.

Precision Casting Process: Silica sol precision casting is employed to ensure a dense valve body structure free of porosity and sand holes, resulting in superior pressure resistance.

High-Precision Machining: Flange faces, sealing surfaces, valve seats, and valve discs are all precision-machined using CNC technology to ensure extremely high sealing precision.

Sealing Surface Hard-Facing: Hard-sealed products feature hard-facing with Cr13 or Stellite alloys, providing excellent resistance to high temperatures, erosion, and wear.

Dust-Free Standardized Assembly: Packing, gaskets, and fasteners are assembled according to strict standards, with robust stem sealing and protection to completely eliminate the risk of external leakage. Pressure Testing: Every valve must pass both a shell hydrostatic test and a seat tightness test; only those that pass are approved for warehousing.

Anti-corrosion Coating & Protective Packaging: Carbon steel bodies feature rust-resistant baked enamel finishes, while stainless steel bodies undergo passivation. Flanges are fitted with protective caps, and export-grade packaging ensures moisture and shock resistance.

Application Areas

Flanged globe valves are core industrial valves suitable for a wide range of global engineering projects:

Thermal & Cogeneration Plants: High-temperature steam pipelines, thermal oil systems, boiler auxiliary piping, and high-pressure water circulation systems.

Petrochemical Industry: Oil transport, chemical fluids, acidic/alkaline media, process piping, and fluid control for reaction units.

Municipal Water & Fire Protection: Urban pipeline networks, fire pump rooms, sewage treatment, and flow regulation/shut-off systems for pumping stations.

Environmental Protection & New Energy: Waste gas and liquid treatment equipment, fluid piping for new energy systems, and natural gas transmission systems.

General Industrial Manufacturing: Factory circulating water, equipment piping, process fluids, and automated pipeline systems.

Why Choose Bolaisi Flanged Globe Valves?

1. Comprehensive Standards for Global Projects

Meets all technical requirements for domestic tenders, exports, and overseas projects; complete documentation ensures hassle-free acceptance.

2. Extensive Material Range

Tailored materials and sealing solutions for standard, corrosive, high-temperature/high-pressure, and abrasive/erosive conditions—avoiding both inadequate specifications and unnecessary over-specification.

3. Stable Quality with Zero Leakage

Precision casting, hardened alloy sealing surfaces, and dual pressure testing ensure reliable long-term operation without leaks, jamming, or failure, significantly reducing after-sales costs.

4. Direct Manufacturer with Ample Stock

In-house production lines and large ready-to-ship inventories support bulk orders, urgent requests, and custom specifications; high cost-performance with no middlemen.

5. Professional Selection & Comprehensive After-Sales Support

Precise pre-sales selection based on operating conditions prevents risks associated with incorrect installation or application; post-sales technical guidance for installation is provided, along with full certification, pressure test reports, and material certificates.

FAQ

Q1: What is the difference between a globe valve and a gate valve?

A: Gate valves are suitable only for fully open or fully closed operation and cannot regulate flow; globe valves, however, can both shut off flow and throttle/regulate pressure, making them ideal for piping applications requiring frequent operation and flow or pressure adjustment. Globe valves are the preferred choice for steam pipelines.

Q2: Can flanged globe valves be used for high-temperature steam?

A: Absolutely. Globe valves made of WCB carbon steel or WC9 alloy steel are specifically designed for high-temperature steam and thermal oil applications; they offer high-temperature resistance, erosion resistance, and reliable sealing, making them the standard valve type for thermal piping systems.

Q3: Do you offer customization, private labeling (OEM), or non-standard products?

A: Yes, we support non-standard dimensions, special pressure ratings, special materials, custom branding, and OEM export services.

Q4: What is the lead time?

A: Standard specifications in stock ship within 3–7 days; lead times for non-standard, high-pressure, or alloy steel custom orders are estimated based on specific requirements.

Q5: Can you provide a complete set of engineering documentation?
