GB Flange Globe Valve

Bolaisi is a reliable industrial valve manufacturer with rich experience in making high-performance, maintenance-friendly fluid control products for various harsh industrial working conditions. Its GB Flange Globe Valve is a force-sealed valve for precise flow regulation and stable pipeline on-off control. This supplier provides full stainless steel specifications, and you can cooperate with this manufacturer to get valves fitting key industrial sectors like power, petrochemical and water treatment.

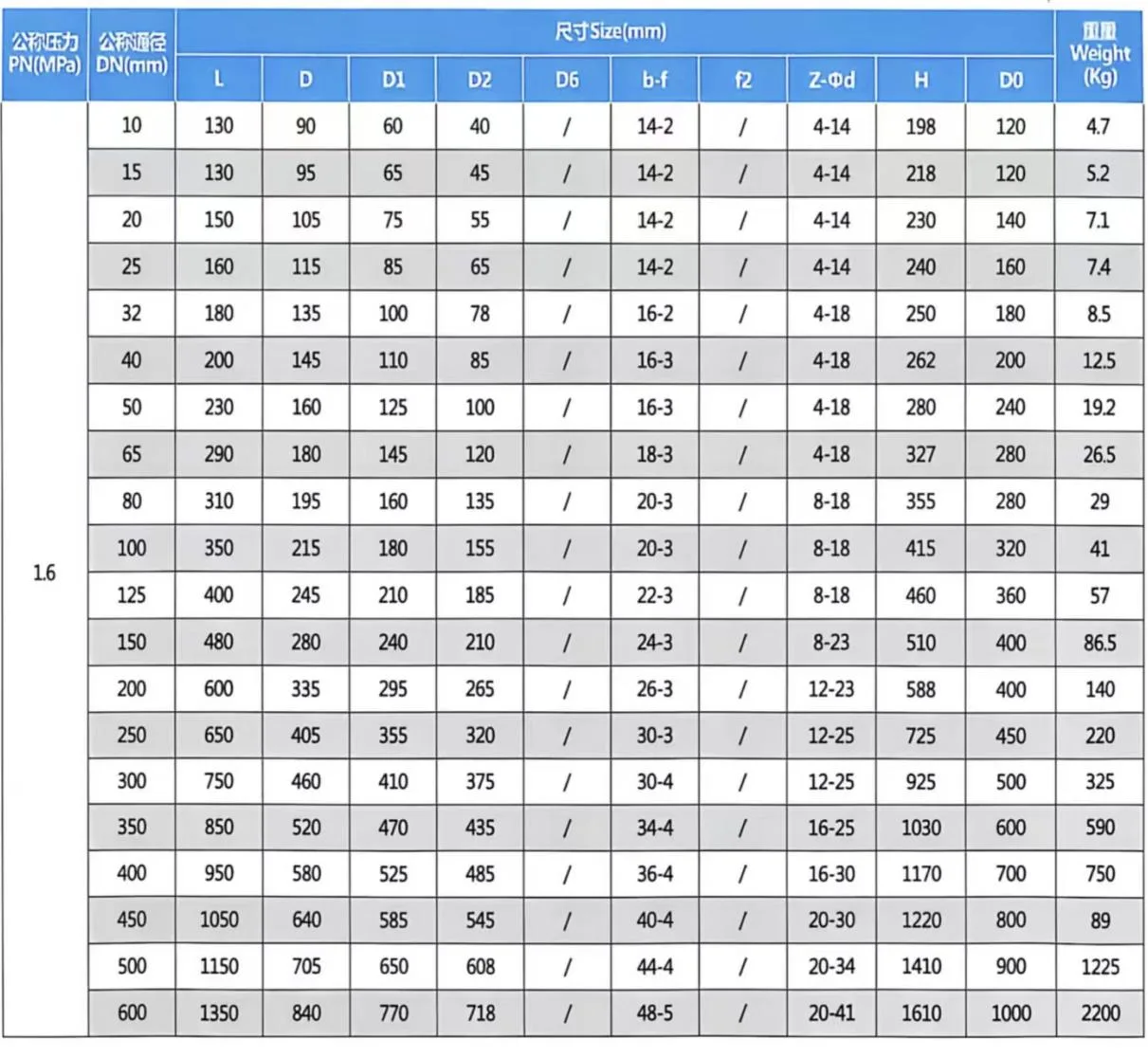

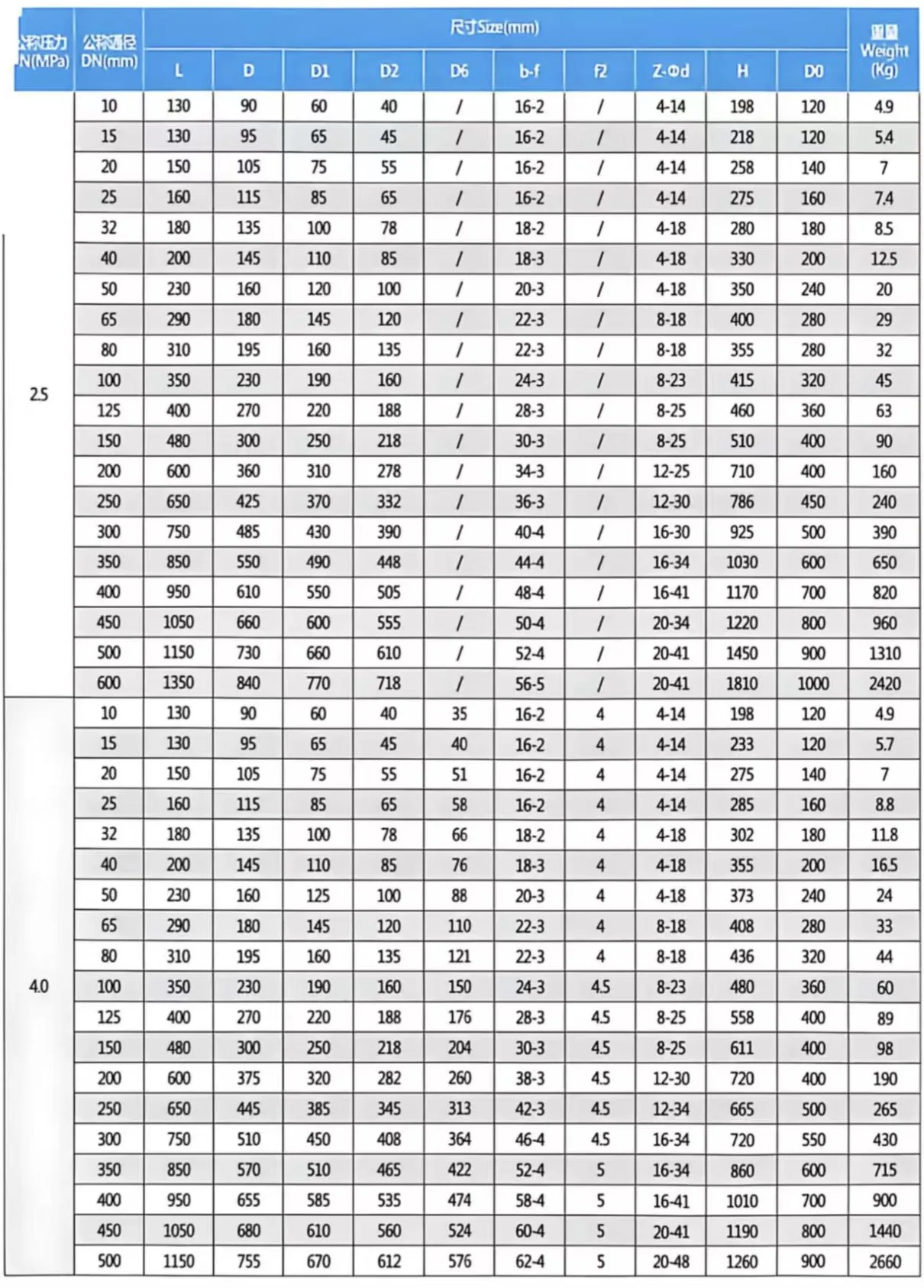

Product Specifications

Product Overview

The GB Flange Globe Valve is a highly versatile force-sealed shut-off valve widely deployed in industrial pipeline systems. It is a core shut-off category valve, mainly used for on-off control and flow regulation of pipeline media. With core advantages of simple structure, reliable sealing performance, and convenient operation and maintenance, this valve is extensively adopted in petroleum, chemical engineering, electric power, water supply and drainage, metallurgy and many other industrial fields.

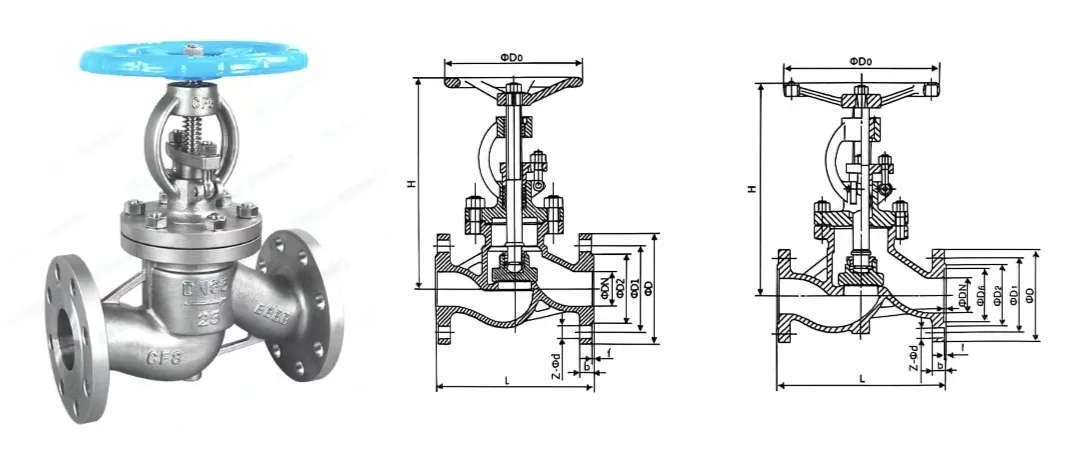

It consists of core components including valve stem, valve disc, valve seat, valve body, stuffing box, and handwheel/actuator. The valve body serves as the main pressure-bearing part with an internal medium flow channel; the valve disc mates with the valve seat to achieve sealing, and the valve stem connects the valve disc to the driving device, driving the valve disc to move up and down to complete the opening and closing of the valve. With stable working performance and strong adaptability to complex working conditions, the GB Flange Globe Valve has become an indispensable fluid control component in key industrial sectors.

Main Application Industries

● Power Generation (Thermal Power / Nuclear Power)

● Petrochemical & Petroleum Refining

● Metallurgy & Steel Manufacturing

● Water Treatment & Municipal Engineering

● Shipbuilding & Offshore Engineering

Working Principle

The core operating logic of the GB Flange Globe Valve covers three main working states, with detailed principles as follows:

Closing (Shut-off)

Clockwise rotation of the handwheel drives the valve stem to move downward, which pushes the valve disc to press tightly against the sealing surface of the valve seat, completely cutting off the medium flow passage. The sealing is realized by forced compression via mechanical force, delivering excellent and reliable sealing performance.

Opening

Counterclockwise rotation of the handwheel lifts the valve stem upward, driving the valve disc to separate from the valve seat. The medium flows through the valve seat orifice, and the pipeline is fully connected and conducted.

Flow Regulation

When the valve disc is lifted only a short distance, a narrow throttling gap is formed between the valve disc and the valve seat. The flow rate and pressure of the medium can be precisely adjusted by controlling the opening height of the valve disc.
