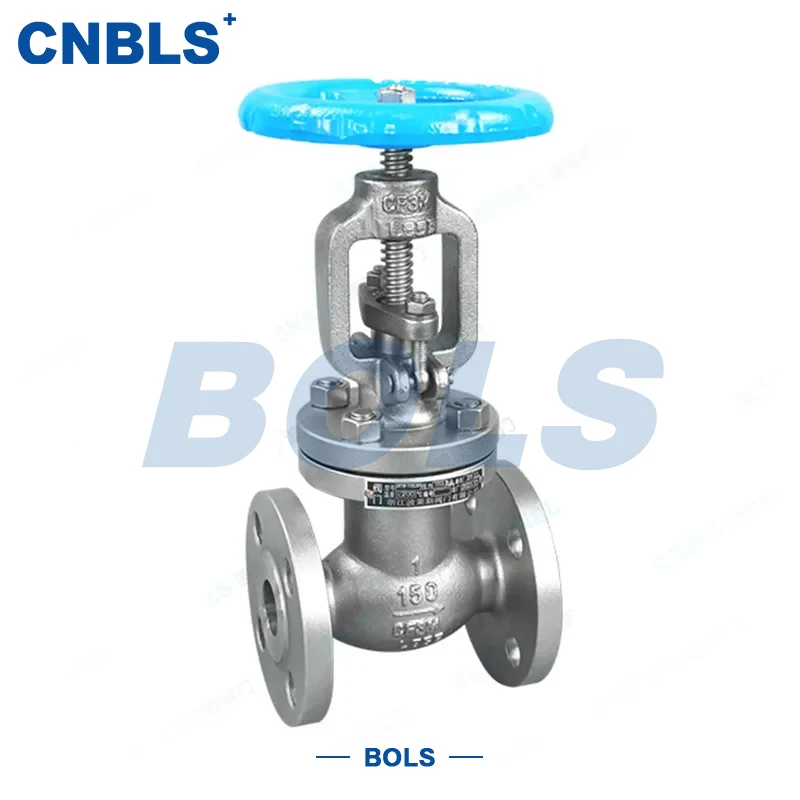

ANSI Stainless Steel Flanged Globe Valves

Bolaisi stands for reliable quality, stable performance and long service life in industrial valves.We are a professional manufacturer and supplier of ANSI Stainless Steel Flanged Globe Valves, with advanced production and strict quality control following API 602, ASME B16.34 and API 598 standards.This valve features wide pressure, temperature and medium adaptability, strong corrosion resistance and excellent sealing. We support customized solutions and wholesale services to meet different project demands.

Send Inquiry

Product Description

Technical Parameters

Parameter Item	Parameter Value
Basic Model	ANSI Stainless Steel Flanged Globe Valve (e.g., API 602 J41W/H, J941W/H ANSI type)
Nominal Diameter	NPS 1/2 ~ NPS 12 (DN15 ~ DN300)
Nominal Pressure	Class 150, 300, 600, 900, 1500, 2500 (ASME B16.34)
Valve Body Material	ASTM A182 F304, F316, F304L, F316L
Valve Core Material	Matching body material; stainless steel with Stellite overlay (ASTM A417); stainless steel with hard alloy overlay (API 602)
Sealing Surface Material	H: Hard alloy; W: Body material; F: PTFE (ASTM D1710); Y: Stellite alloy (ASTM A417)
Connection Type	Flanged (RF, RTJ, FF); ASME B16.5, ASME B16.47
Actuation Type	Manual (handwheel, API 602); Electric (multi-turn, NEMA 4/4X); Pneumatic (double/single acting); Bevel gear
Applicable Temperature	H/Y/W: -29℃ ~ +425℃; F: -29℃ ~ +200℃ (ASME B16.34)
Applicable Medium	Water, steam, oil, natural gas, LPG, process media, corrosive chemical media (API 602)
Sealing Performance	Metal seal: API 598 Class IV; Soft seal: API 598 Class VI
Shell Test Pressure	1.5 × Nominal Pressure (API 598)
Seal Test Pressure	1.1 × Nominal Pressure (API 598)

Core Attributes

Category	Specification
Pressure Class	Class 150 / 300 / 600 / 900 / 1500 / 2500
Flanged Connection	RF (Raised Face), RJ (Ring Joint), FF (Flat Face)
Structure Type	OS&Y (Outside Screw & Yoke), NRS (Non-Rising Stem), Straight-through Flow Channel
Seal Type	Metal Hard Seal, Soft Seal

Component Materials

Components of the ANSI Stainless Steel Flanged Globe Valves comply with US standards, providing excellent corrosion resistance, wear resistance and sealing.

Component	Material Specification
Valve Body / Bonnet	ASTM A351 CF8 (304), CF8M (316), CF3 (304L), CF3M (316L)
Valve Stem	AISI 304, AISI 316, 17-4PH
Valve Core / Seat	Stellite overlay, body seal, PTFE soft seal
Gland Packing	PTFE, flexible graphite, braided graphite
Bolt / Nut	ASTM A193 B8/B8M

Design & Manufacturing Standards

● Globe Valve Design: API 602, ANSI/ASME B16.34

● Face-to-Face Dimensions: ANSI/ASME B16.10

● Flange Dimensions: ANSI/ASME B16.5, ANSI/ASME B16.47

● Pressure-Temperature Ratings: ANSI/ASME B16.34

● Testing & Inspection: API 598

● Installation: ASME B16.5, ASME B31.3

Product Introduction

ANSI Stainless Steel Flanged Globe Valves is an essential regulating and shut-off device in industrial piping systems.It controls flow and provides precise throttling by lifting the disc via the valve stem.

Made of high-corrosion-resistant stainless steel with flanged ends, the valve is manufactured strictly to American standards.It features reliable sealing, stable regulation and easy maintenance, widely used in oil, chemical, LNG, power, pharmaceutical and water treatment industries.

As a fully American-standard compliant valve, it can be customized in structure, material and actuation to meet various application requirements, providing a reliable solution for industrial piping systems.

Selection Points

1.Pressure & Temperature: Match working pressure and temperature according to ASME B16.34.

2.Material: Select 304 (CF8), 316 (CF8M) or ultra-low carbon stainless steel based on medium corrosiveness.

3.Seal & Flange: Use metal hard seal and RJ flange for high-pressure, high-temperature or particle-containing service; use RF or FF for general service.

4.Structure: OS&Y for clear position indication and easy maintenance; NRS for space-limited installation.

5.Actuation: Electric or pneumatic for remote/high-frequency operation (US standard explosion-proof); manual for low-frequency local operation.
