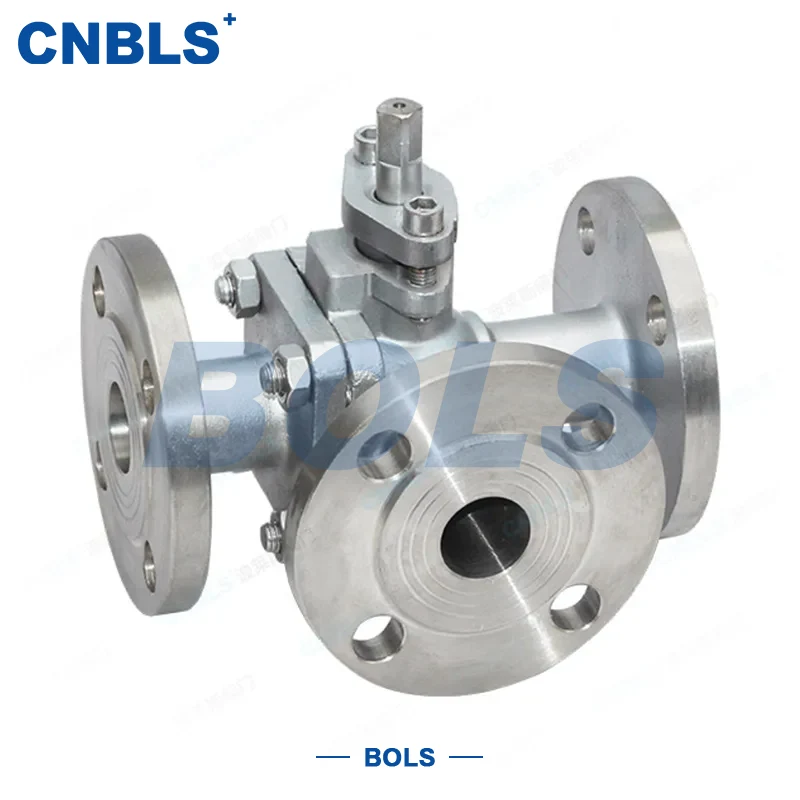

Stainless Steel Three-way Flange Ball Valves

Bolaisi is a reliable supplier with strict quality control and advanced production capacity, specializing in industrial valves. The Stainless Steel Three-way Flange Ball Valves has T/L-port options and flanged connections, suitable for flow diversion. We manufacture it with high quality and provide wholesale, customized services to fit different industrial needs.

Send Inquiry

Product Description

The Stainless Steel Three-way Flange Ball Valves refer to a multi-port control valve manufactured from stainless steel materials such as 304, 316, 304L, and 316L, featuring flanged end connections. The valve adopts an integral ball-and-stem construction and is available with T-port or L-port flow patterns, enabling media mixing, diverting, or directional switching.

With its combination of corrosion-resistant stainless steel and reliable flanged sealing, the valve provides stable performance in demanding industrial environments. It is suitable for systems that require dependable connection integrity and long-term durability.

Structure & Working Principle

The valve operates by rotating the ball through the stem to switch flow paths between different ports.

T-port: Used for mixing or diverting flow

L-port: Used for directional switching between two lines

Flanged ends: Ensure accurate alignment and secure sealing

The streamlined internal flow path helps reduce pressure loss while maintaining compact overall dimensions.

Key Features

Integral High-Strength Design

The ball and stem are integrally manufactured, reducing assembly tolerance and improving operational stability and service life.

Excellent Corrosion Resistance

Multiple stainless steel grades are available to handle acids, alkalis, chloride-containing media, and general corrosive fluids.

Reliable Flanged Sealing

Flanges comply with GB/T 9113 and ANSI B16.5 standards, providing convenient installation and proven sealing performance.

Flexible Seat Options

Soft seats and metal seats are available to meet different temperature and pressure requirements.

Automation Compatibility

The valve can be equipped with manual, worm gear, pneumatic, or electric actuators for easy integration into automated systems.

Technical Specifications

Parameter	Value
Product Name	Stainless Steel Three-Way Flanged Ball Valves
Nominal Size	DN15–DN300 (NPS 1/2"–12")
Pressure Rating	PN10–PN40; Class 150/300/600
End Connection	Flanged RF / RTJ
Temperature Range	Soft seat: -29°C to 232°C; Metal seat: -46°C to 425°C
Port Type	T-port / L-port
Operation	Manual / Worm Gear / Pneumatic / Electric
Leakage Class	Soft seat: Class VI; Metal seat: Class V
