Why Is a Two Piece High Platform Flanged Ball Valve a Smart Choice for Modern Industrial Pipeline Control

Abstract: Selecting the right valve can directly affect pipeline safety, automation efficiency, maintenance costs, and long-term operating stability. The Two Piece High Platform Flanged Ball Valve from Bolaisi is designed for industrial shut-off applications where reliable sealing, low flow resistance, flexible media compatibility, and actuator integration are essential. With a two-piece body, floating-ball sealing structure, gland-type stem packing, and ISO5211 high mounting platform, this valve provides a practical solution for water, oil, gas, steam, chemical, HVAC, and other industrial pipeline systems.

Table of Contents

• What Is a Two Piece High Platform Flanged Ball Valve?
• How Does Its Structure Improve Pipeline Performance?
• What Are the Main Advantages?
• How Do Soft and Metal Hard Seals Compare?
• What Are the Key Technical Parameters?
• Where Can This Ball Valve Be Used?
• How Should Buyers Select the Right Valve?
• Why Choose Bolaisi as a Valve Manufacturer?
• Frequently Asked Questions
• Conclusion

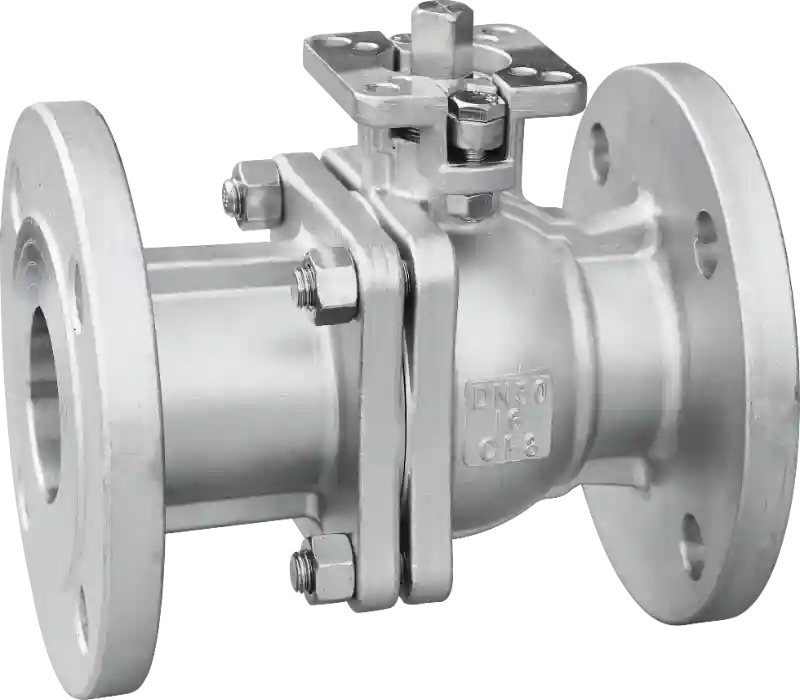

What Is a Two Piece High Platform Flanged Ball Valve?

A Two Piece High Platform Flanged Ball Valve is an industrial quarter-turn valve designed primarily for reliable pipeline shut-off. Its ball rotates 90 degrees to open or close the flow passage, providing fast operation and relatively low flow resistance. The two-piece construction also makes inspection and maintenance more convenient compared with designs that are difficult to access after installation.

One of its defining features is the ISO5211 high mounting platform. Instead of requiring an additional actuator bracket in many installations, the standardized platform allows compatible electric or pneumatic actuators to be mounted directly. This makes the valve particularly suitable for projects where automated or remote pipeline control is required.

According to Bolaisi's product information, the valve is available in DN15-DN200 (1/2"-8"), uses a stainless steel valve body, and is rated PN16. It supports bidirectional flow and can be configured with either PTFE soft sealing or metal hard sealing depending on operating conditions.

How Does Its Structure Improve Pipeline Performance?

The performance of an industrial valve depends not only on the material but also on its internal structure and connection design. The Bolaisi design incorporates several features intended to address common pipeline requirements.

Two-Piece Split Valve Body

The split body provides a practical balance between structural integrity and serviceability. Its design facilitates inspection, assembly, and maintenance while maintaining consistent machining dimensions. For industrial users, easier access can help reduce maintenance time and unnecessary pipeline downtime.

Floating Ball Sealing Structure

The floating ball design supports bidirectional sealing. Under medium pressure, the ball is pushed toward the valve seat, helping maintain contact between the sealing surfaces. This structure is particularly useful for shut-off applications where dependable isolation is more important than throttling performance.

Gland-Type Stem Packing

The valve stem uses a gland-type packing structure designed to minimize external leakage. The packing can also be replaced during maintenance, which can reduce service complexity and help avoid unnecessary removal of the entire valve from the pipeline.

ISO5211 High Platform

The high mounting platform is one of the most important features for automated systems. Its standardized interface supports direct installation of compatible pneumatic or electric actuators, simplifying equipment integration and reducing the need for custom mounting components.

What Are the Main Advantages of a Two Piece High Platform Flanged Ball Valve?

For engineers, EPC contractors, distributors, and industrial valve buyers, a valve should be evaluated according to actual operating requirements rather than appearance alone. The key advantages include:

• Fast 90° operation: Quarter-turn opening and closing enables rapid pipeline isolation.
• Low flow resistance: The straight-through ball passage supports efficient fluid movement.
• Bidirectional sealing: The floating ball structure supports shut-off from either flow direction.
• Automation compatibility: The ISO5211 high platform simplifies actuator installation.
• Flexible sealing options: PTFE soft seals and metal hard seals address different temperature and media requirements.
• Convenient maintenance: The split body and replaceable stem packing simplify service operations.
• Wide size coverage: DN15-DN200 options support a broad range of pipeline applications.

These characteristics make the valve suitable for both conventional manual shut-off systems and automated industrial fluid-control equipment.

How Do Soft and Metal Hard Seals Compare?

Sealing selection is one of the most important considerations when specifying a ball valve. Different media and temperatures can place very different demands on the valve seat.

Bolaisi's published testing information indicates that the soft-seal version is tested for applications up to 150°C, while the metal hard-seal version is intended for conditions up to 280°C. The hard-seal configuration is especially useful where high-temperature erosion or particle impact may challenge conventional soft-seat materials.

Buyers should always select the sealing configuration according to actual temperature, pressure, media composition, compatibility requirements, and applicable project standards.

What Are the Key Technical Parameters?

Understanding the basic specifications makes it easier for engineers and procurement teams to determine whether a valve fits a particular pipeline design.

For projects with additional requirements, buyers should verify pressure-temperature ratings, flange standards, media compatibility, actuator torque, and other engineering parameters before placing an order.

Where Can This Ball Valve Be Used?

The combination of stainless steel construction, multiple sealing configurations, flanged connection, and actuator compatibility allows this valve to serve a broad range of industrial applications.

• Municipal water supply and drainage: Suitable for water networks, secondary water systems, and wastewater shut-off pipelines.
• Chemical processing: Applicable to oil products, slightly corrosive fluids, and selected high-temperature process lines.
• Gas transmission: Useful for gas pipeline stations and shut-off systems where dependable isolation is required.
• Power plants: Suitable for boiler steam, heating circulation, and related pipeline systems.
• Factory HVAC: Can be used in cooling-water and heat-transfer-oil circulation systems.
• Equipment support systems: Appropriate for oil transportation, cooling circulation, and other industrial fluid-control applications.

When automated operation is required, compatible electric or pneumatic actuators can be integrated through the ISO5211 high platform, making the valve suitable for centralized or remote control systems.

How Should Buyers Select the Right Valve?

Choosing an industrial ball valve should start with the operating conditions rather than the valve size alone. Procurement teams can use the following checklist:

1. Identify the medium. Determine whether the pipeline carries water, oil, gas, steam, or a corrosive or particle-containing fluid.
2. Confirm operating temperature. Select PTFE soft sealing or metal hard sealing according to the actual temperature range.
3. Confirm pressure requirements. Make sure the valve's pressure rating matches the system design conditions.
4. Select the nominal diameter. Match DN size and flange dimensions with the existing pipeline.
5. Determine actuation requirements. If remote or automatic control is needed, verify actuator compatibility and required torque.
6. Check material compatibility. Stainless steel and sealing materials should be suitable for the transported medium.
7. Consider maintenance. Designs with accessible packing and practical body construction can help reduce long-term service complexity.

A professional Two Piece High Platform Flanged Ball Valve supplier should be able to provide technical information that helps customers make these decisions according to actual working conditions.

Why Choose Bolaisi as a Valve Manufacturer?

Zhejiang Bolaisi Valve Co., Ltd. operates as an industrial valve manufacturer and supplier with production, machining, inspection, assembly, and quality-control capabilities. According to the manufacturer's published product information, each valve undergoes machining inspection, assembly verification, pressure testing, and final inspection before shipment.

This manufacturing approach is important because industrial valve reliability depends on more than the nominal specification. Dimensional consistency, sealing quality, assembly accuracy, pressure testing, and final inspection all contribute to dependable field performance.

For international buyers searching for a China valve manufacturer, supplier, or factory, Bolaisi offers the Two Piece High Platform Flanged Ball Valve in a range of sizes and sealing configurations. Its product design also addresses a practical requirement increasingly found in modern plants: integrating conventional pipeline shut-off equipment with automated control systems.

Bolaisi's product portfolio additionally includes stainless steel gate valves, globe valves, check valves, butterfly valves, and other industrial valve solutions, allowing buyers to source different pipeline-control components from the same professional supplier.

Frequently Asked Questions

1. What is the main purpose of a Two Piece High Platform Flanged Ball Valve?

Its primary purpose is reliable industrial pipeline shut-off. The 90° rotary ball structure enables quick opening and closing, while the floating-ball design provides bidirectional sealing.

2. What does the ISO5211 high platform do?

The ISO5211 high platform provides a standardized actuator mounting interface. It allows compatible electric or pneumatic actuators to be installed directly, simplifying automation and equipment integration.

3. What is the difference between soft sealing and metal hard sealing?

PTFE soft sealing is intended for applications such as clean water, gas, and normal-temperature oil, with a published working temperature of up to 150°C. Metal hard sealing is designed for more demanding conditions, including high-temperature steam and particle-containing media, with a published working temperature of up to 280°C.

4. What sizes are available?

The Bolaisi Q41F/H/Y model is listed in sizes from DN15 to DN200, equivalent to approximately 1/2" to 8". Actual availability should be confirmed according to project requirements.

5. Can this valve be used with an electric actuator?

Yes. The integrated ISO5211 high mounting platform is designed to support compatible electric or pneumatic actuators. Actuator selection should be based on valve size, operating pressure, medium, and required operating torque.

6. Is this valve suitable for high-temperature applications?

Yes, when the appropriate sealing configuration is selected. Bolaisi specifies the soft-seal version for temperatures up to 150°C and the metal hard-seal version for temperatures up to 280°C. Users should verify the complete pressure-temperature conditions before selection.

Conclusion

The Two Piece High Platform Flanged Ball Valve combines fast quarter-turn operation, bidirectional floating-ball sealing, a serviceable two-piece body, flexible sealing options, and ISO5211 actuator compatibility. With applications ranging from water and gas systems to chemical processing, steam, HVAC, and power-plant pipelines, it can provide a practical solution for industrial shut-off and automated fluid-control requirements.

If you are sourcing a reliable Two Piece High Platform Flanged Ball Valve from a professional China manufacturer and need help selecting the appropriate size, sealing structure, or actuator configuration, contact us at Bolaisi for technical guidance and a suitable valve solution for your project.
